  • Audio Indicator HP3025XW

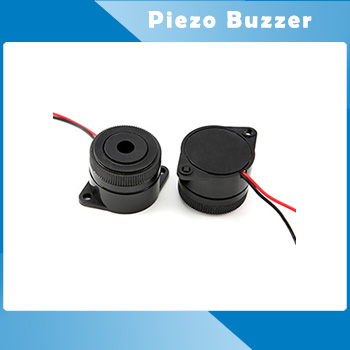

Audio Indicator HP3025XW

Audio Indicator HP3025XW

  • Product description: Piezo Audio Indicator HP3025XW - Internal Driven Piezo Buzzer ,Lead wire type , Dia 30 x25mm Worked with 12V DC , Output3.5K Hz 90dB at 10cm .Applied to Home appliance, Passenger Cars etc for alarm
  • INQUIRY

Piezo Audio Indicator HP3025XW

Buzzer Datasheet: HP3025XW  PDF Datasheet Download

Lead wire type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 30 x25mm  Worked with 12V DC , Output3.5K Hz 90dB at 10cm.

This Piezo Audio Indicator applied to  Home appliance, Passenger Cars  etc for alarm.

Type

UNIT

HP3025AXW

HP3025BXW

*Min. Sound Output at10cm

dB

90

90

Rated Voltage

VDC

12

12

Operating Voltage

VDC

3~20

3~20

Resonant Frequency

Hz

3500±500

3500±500

*Max. Current Consumption

mA

10

10

Tone Nature


Continuous

Pulse 1-4Hz

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

13


Value applying at rated voltage

DIMENSIONS     Unit:mm     Tolerance:±0.5
