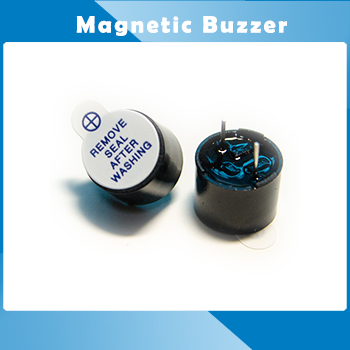

Magnetic Buzzer HCM12X

Magnetic Buzzer HCM12X

  • Product description: Magnetic Buzzer HCM1205X.HCM1212X- Pin type ,Internal Circuitry, Dia 12 x 9.5mm.1.5~12V DC,Output 2.3K Hz 85dB
  • INQUIRY

Magnetic Buzzer HCM1203X ,HCM1205X ,HCM1212X

Buzzer Datasheet:

Pin type ,Internal Circuitry, Dia 12 x 9.5mm. 1.5~12V DC,Output 2.3K Hz 85dB at 10cm

Type

HCM1201X

HCM1203X

HCM1205X

HCM1212X

Rated Voltage        (V)

1.5

3

5

12

Operating  Voltage  (V)

1.3~2

2~5

3~7

8~15

Rated Current     (MA)

< 30

< 30

< 30

< 30

Sound Output at10cm(dB)

> 80

> 80

> 85

> 85

Resonant Frequency  (Hz)

2300 ± 400

2300 ± 400

2300  ±300

2300 ±300

Response Time     (ms)

< 50

< 50

< 50

< 50

Operating Temperature  (C)

-10~+50

-10~+50

-25~+70

-25~+70

Storage  Temperature  (C)

-15~+60

-15~+60

-30~+80

-30~+80

Weight                (g)

2

2

2

2

Value applying at rated voltage

DIMENSIONS     Unit:mm     Tolerance:±0.5
