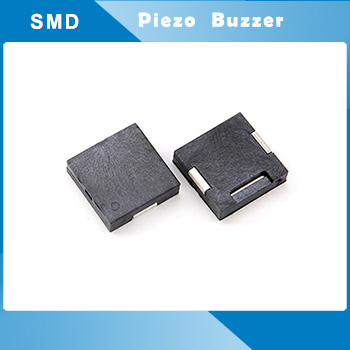

Micro Piezo Buzzer HPT12030B

Micro Piezo Buzzer HPT12030B

  • Product description: Micro Piezo Buzzer,SMD Piezo Buzzer HPT12030B -Datasheet-External Circuitry ,12x 12x H3,Worked with 5V p-p 4KHz ,Output 75dB at 10cm​
  • INQUIRY

Micro Piezo Buzzer, SMD Piezo Buzzer HPT12030B

Surface Mount Micro Buzzer
External Circuitry ,12x 12x H3,Worked with 5V p-p 4KHz ,Output 75dB at 10cm

Type

UNIT

HPT12030B

*Min. Sound Output at10cm

dB

75

Rated Voltage

Vp-p

5

Operating Voltage

Vp-p

1~25

Resonant Frequency

Hz

4000±500

.Rated Consumption

mA

5

Capacitance at 120 HZ

pF

15000±30%

Operating Temperature

°C

-20~+105

Storage Temperature

°C

-30~+110

Dimension

12*12*H3

Weight

g

0.3


Value applying rated voltage (Resonant frequency,1/2duty,square wave)

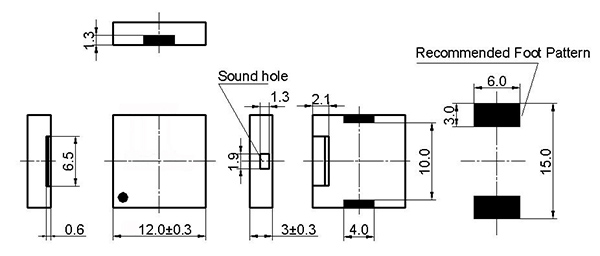

Dimensions (Unit:mm)

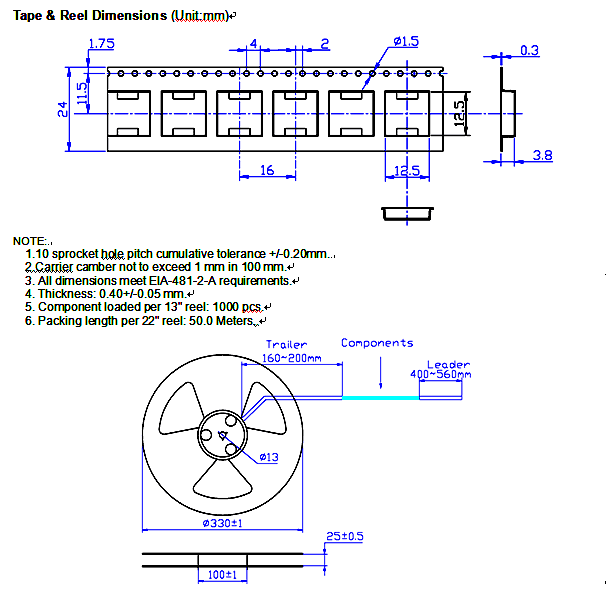

Reel Packing :
