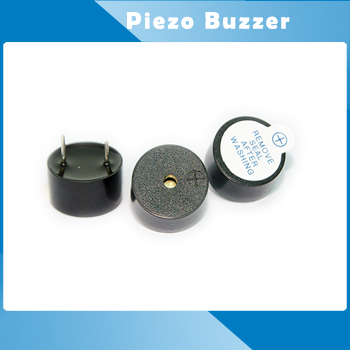

Piezo Buzzer HP1470X

Piezo Buzzer HP1470X

  • Product description: Piezo Buzzer HP1470X Datasheet-​ Internal Driven Piezo Buzzer ,Pin terminal type ,Dia 14 x7mm Worked with 5V 12V DC,Output 4K Hz 85dB at 10cm
  • INQUIRY

Piezo Buzzer, Piezoelectric Buzzer HP1470X

Buzzer Datasheet: HP1470X PDF Datasheet Download
Pin termina  Type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 14 x7mm Worked with 5V 12V DC,Output 4K Hz 85dB at 10cm

Type

UNIT

HP147005X

HP147012X

*Min. Sound Output at10cm

dB

80

85

Rated Voltage

VDC

5

12

Operating Voltage

VDC

3~9

3~16

Resonant Frequency

Hz

4000±500

4000±500

*Max. Current Consumption

mA

8

8

Tone Nature


Continuous

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

1


Value applying rated voltage (DC)

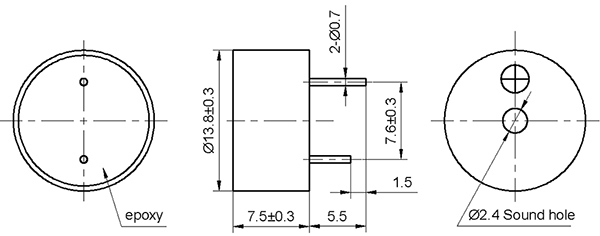

DIMENSIONS     Unit:mm     Tolerance:±0.5
