  • SMD Buzzer HCT9045A
SMD Buzzer HCT9045A

SMD Buzzer HCT9045A

  • Product description: SMD Buzzer,SMD Magnetic Buzzer HCT9045A-Datasheet -External Circuitry Dia 9x H4.5,Worked with 5V p-p 2.7KHz ,Output 85dB
  • INQUIRY

SMD Buzzer , SMD Magnetic Buzzer HCT9045A05

Surface Mount Micro Buzzer
External Circuitry Dia 9x H4.5,Worked with 5V p-p 2.7KHz ,Output 85dB at 10cm


Type

HCT9045A05

Rated Voltage        (V)

5

Operating  Voltage  (V)

4~7

Rated Current     (MA)

< 80

Coil  Resistance   (ohm)

25 ± 5

Sound Output at10cm(dB)

> 85

Resonant Frequency  (Hz)

2730

Operating Temperature  (℃)

-20~+70

Storage  Temperature  (℃)

-30~+85

Dimension

*Ф9*H4.5

Weight                (g)

0.8


Value applying rated voltage (Resonant frequency,1/2duty,square wave)

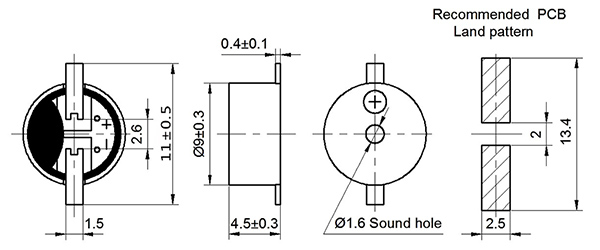

Dimensions (Unit:mm)

Reel Packing :
