  • Micro Buzzer HCT5020A
Micro Buzzer HCT5020A

Micro Buzzer HCT5020A

  • Product description: Micro Buzzer, SMD Magnetic Buzzer HCT5020A -Datasheet-External Circuitry,5.0x5.0xH2.0,Worked with 3V p-p 4K Hz ,Output 75dB at 10cm
  • INQUIRY

Micro Buzzer,SMD Magnetic Buzzer HCT5020A03

Surface Mount Micro Buzzer
External Circuitry ,5.0x 5.0xH2.0,Worked with 3V p-p 4K Hz ,Output 75dB at 10cm

Type

HCT5020A03

Rated Voltage        (V)

3

Operating  Voltage  (V)

2~4

Rated Current     (MA)

< 110

Coil  Resistance   (ohm)

12 ± 3

Sound Output at10cm(dB)

> 75

Resonant Frequency  (Hz)

4000

Operating Temperature  (℃)

-20~+70

Storage  Temperature  (℃)

-30~+85

Dimension

5.0*5.0*H2.0

Weight                (g)

0.8


Value applying rated voltage (Resonant frequency,1/2duty,square wave)

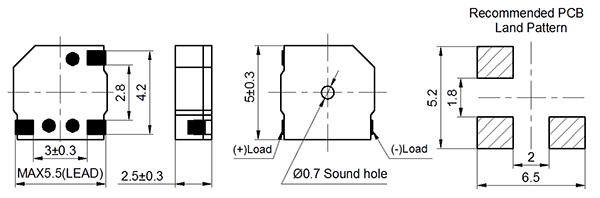

Dimensions (Unit:mm)
